Lawn Mower & Lawn Edger Blades



no image file

Edge Angle

no image file

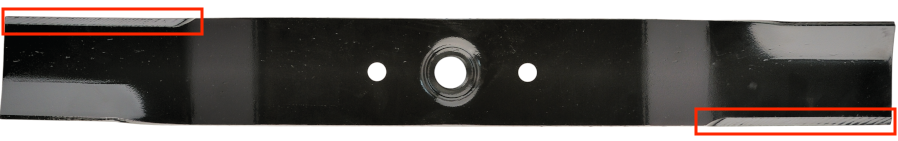

Lawn Mower Blade

On Lawn Mower blades, sharpen the upper side of the blade's leading edge. The areas to be sharpened are highlighted in red.

no image file

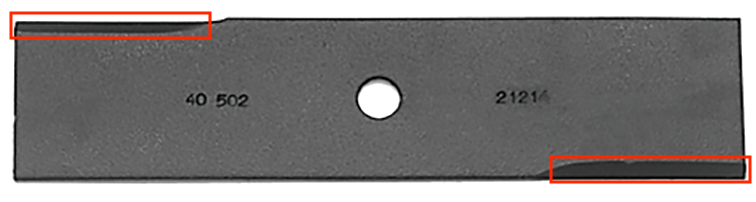

Lawn Edger Blade

On Lawn Edger blades, sharpen the side of the blade which is the leading edge. The areas to be sharpened are highlighted in red.


When the world wearies and society fails to satisfy, there is always the garden.

Minnie Aumonier

Care must be taken to ensure the blade remains balanced (i.e., ensuring that the removal of metal during the sharpening is equal on both sides). For this reason (and many others), it is highly recommended to perform the sharpening of the blade after removing it from the mower or edger.

General Guidelines

α

Sharp
ness

Notes

30°
5

If using a Tormek to sharpen this blade, the SVM-45 Knife Jig can be used, but I'd recommend using the SVD-110 Tool Rest.

The Lee Valley Rotary Mower Sharpener sharpens blades at 25°.

Shaping the edge

New blades probably will not need reshaping. However, if a nick is in the edge, this may be needed.

If you use an angle grinder, consider using a 120 grit flap disc. A metal grinding wheel may be needed for large-scale shaping. In either case, be sure to not overheat the metal too much: it weakens the metal.


Sharpening the edge

Use a machinist’s hand file.

  1. Start with a 12-14" bastard file (as necessary).
  2. Next, continue with a 8-10" medium (or second) cut file.
  3. Finish with a 6" smooth cut file, then use this file to remove the burr.

no image file

Example icon

Sharpness Scale

Sharpness scales (as shown in the grey icon to the left) are used to indicate the recommended sharpness for the blades noted above. You can click on any of the icons showing the sharpness scale and be redirected to the page describing this more. Lower numbers are duller; higher numbers sharper.

These are general recommendations; you will need to use your own judgment, based on the knive’s intended purpose.
